Igiene e cura della persona                                                              Asciugamani elettrici
         Hygiene and personal care solutions                                                            Hand dryers

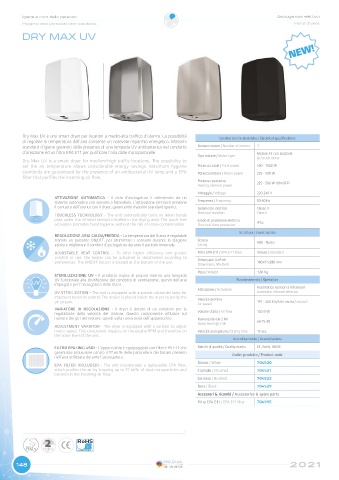

         DRY MAX UV

                                                                                                       NEW!


















         Dry Max UV è uno smart dryer per location a medio-alta traffico d’utenza. La possibilità   Caratteristiche elettriche / Electrical speci¦cations
         di regolare la temperatura dell’aria consente un notevole risparmio energetico. Massimi
         standard d’igiene garantiti dalla presenza di una lampada UV antibatterica nel condotto   Numero motori / Number of motors  1
         d’areazione ed un filtro EPA E11 per purificare l’aria dalle microparticelle.     Motore AC con spazzole
                                                                      Tipo motore / Motor type  Ac brush motor
         Dry Max UV is a smart dryer for medium-high traffic locations. The possibility to
         set  the  air  temperature  allows  considerable  energy  savings.  Maximum  hygiene   Potenza totale / Total power  450 - 1000 W
         standards are guaranteed by the presence of an antibacterial UV lamp and a EPA   Potenza motore / Motor power  225 - 500 W
         filter that purifies the incoming air flow.
                                                                      Potenza resistenza   225 - 500 W (ON-OFF)
                                                                      Heating element power
                                                                      Voltaggio / Voltage  220-240 V
                    ATTIVAZIONE  AUTOMATICA  -  Il  ciclo  d’asciugatura  è  ottimizzato  da  un
                    sistema automatico con sensore a fotocellula. L’attivazione no-touch previene   Frequenza / Frequency  50-60 Hz
                    il contatto dell’utente con il dryer, garantendo massimi standard igienici.  Isolamento elettrico  Classe II
                                                                      Electrical isolation  Class II
                    TOUCHLESS TECHNOLOGY - The unit automatically turns on when hands
                    pass under the infrared sensors installed in the drying area. The touch-free   Grado di protezione elettrica
                    activation promotes hand hygiene, without the risk of cross-contamination.  Electrical class protection  IP34
                                                                                     Struttura / Construction
                    REGOLAZIONE ARIA CALDA/FREDDA - La temperatura del flusso è regolabile
                    tramite  un  pulsante  ON/OFF,  per  ottimizzare  i  consumi  durante  la  stagione   Scocca  ABS - Nylon
                    estiva e migliorare il comfort d’asciugatura durante il periodo invernale.  Casing
                    ADJUSTABLE  HEAT  CONTROL  -  To  offer  higher  efficiency  and  greater   Filtro EPA E11 / EPA E11 Filter  Incluso / Standard
                    comfort  in  use,  the  heater  can  be  activated  or  deactivated  according  to   Dimensioni (LxPxH)
                    preferences. The ON/OFF button is located at the bottom of the unit.   180x97x280 mm
                                                                      Dimensions (WxDxH)
                                                                      Peso / Weight        1,86 Kg
                    STERILIZZAZIONE UV - Il prodotto ospita al proprio interno una lampada
            UV      UV funzionale alla disinfezione del condotto di ventilazione, quindi dell’aria   Funzionamento / Operation
                    impiegata per l’asciugatura delle mani.
                                                                      Attivazione / Activation  Automatico (sensori a infrarossi)
                    UV STERILIZATION - The unit is equipped with a special ultraviolet lamp for   Automatic infrared detector
                    improved bacterial control. The device is placed inside the dryer to purify the   Velocità dell’aria
                    air stream.                                       Air speed            191 - 260 Km/h (in uscita / output)
                    VARIATORE  DI  REGOLAZIONE  -  Il  dryer  è  dotato  di  un  variatore  per  la   Volume d’aria / Air ±ow  120 m¶/h
                    regolazione  della  velocità  del  motore.  Questo  componente  influisce  sul
                    numero dei giri del motore, quindi sulla rumorosità dell’apparecchio.  Rumorosità (da 2 M)
                                                                      Noise level (@ 2 M)   68-75 dB
                    ADJUSTMENT VARIATOR - The dryer is equipped with a variator to adjust
                    motor speed. This component impacts on the engine RPM and therefore on   Velocità asciugatura / Drying time  15 sec.
                    the noise level of the unit.
                                                                                   Accreditamento / Accreditations
                    FILTRO EPA (INCLUSO) - L’apparecchio è equipaggiato con filtro EPA E11 che   Marchi di qualità / Quality marks  CE, RoHs, WEEE
                    garantisce protezione contro il 97,66% delle particelle e dei batteri presenti   Codici prodotto / Product code
                    nell’aria utilizzata durante l’asciugatura.
                                                                      Bianco / White       704520
                    EPA  FILTER  (INCLUDED)  -  The  unit  incorporates  a  replaceable  EPA  filter,
                    which purifies the air by trapping up to 97,66% of dust microparticles and   Cromato / Chromed  704521
                    bacteria in the incoming air flow.
                                                                      Satinato / Brushed   704522
                                                                      Nero / Black         704529
                                                                      Accessori & ricambi / Accessories & spare parts
                                                                      Filtro EPA E11 / EPA E11 žlter  704995
